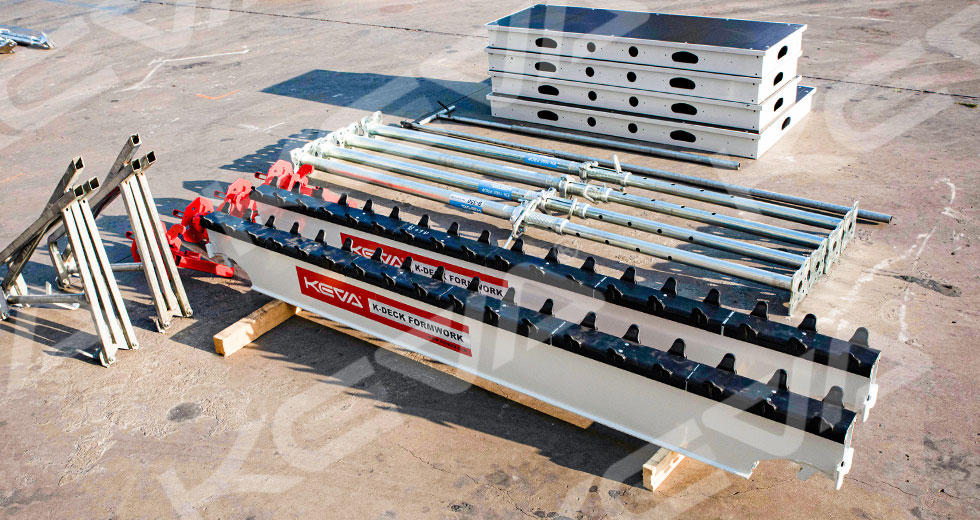

K-DECK Slab Formwork
K-DECK Slab Formwork
K-DECK Slab Formwork
K-DECK Slab Formwork
We would be pleased to advise you personally or send you further information.
contact usK-DECK has been designed for standard use in constructing slabs with thickness up to 43 cm. With the small panel span (75 cm) and, if required, a middle support under the main beam, slabs up to 109 cm thick can be formed. K-DECK's range of applications extends from residential construction through to industrial construction projects.
The systematic assembly sequence and lightweight system components made of aluminium accelerate working operations. In addition, the possibility of early striking with the drophead system reduces on-site material requirements.
Panel Lengths: 75 / 150 cm
Panel Widths: 37.5 / 50 / 75 cm
Frame Material: Aluminium 6061-T6
Protection: Powder Coating
Standard Connection: Main Beam with Drophead or Prophead.
Covered by: 9mm European Birch Plywood.
Welding quality follows EN1090 standard.
