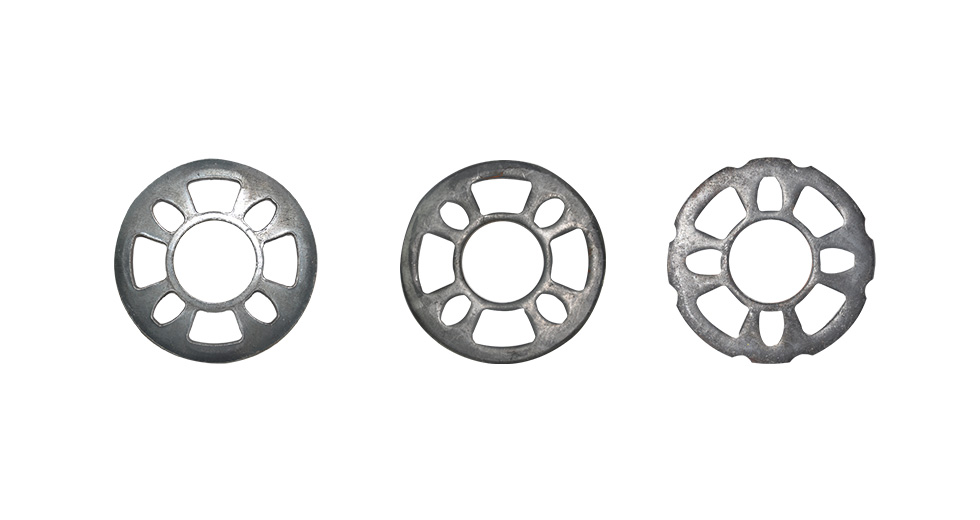

Scaffolding Rosette Description


Scaffolding rosettes, also named scaffold flange ,scaffolding disc, scaffolding ring etc, it is welded to each standard at 0.5m vertical intervals. Four smaller openings in the rosette automatically centre each ledger at right angles, (making the scaffold square), while four larger openings allow diagonal braces and other components to connect at a variety of angles.


The rosette makes it possible for a few basic components – standard, ledger, diagonal brace and deck – to form the basis for almost limitless applications, with an unparalleled range of additional components for special solutions.


Scaffolding Rosette Specification

Material:

Q345

Size:

D123mm

Weight:

0.49kg

Apply:

D48 & D60 tube

Surface:

Black, Electro Galvanized, Hot Dip Galvanized
